Integrate BloodHound Enterprise with Splunk SOAR

Learn how to install and configure the BloodHound Enterprise Splunk SOAR app to ingest attack path findings into Splunk SOAR.

Splunk SOAR (formerly Phantom) helps security teams orchestrate tools and automate response workflows. This guide focuses on installing and configuring the BloodHound Enterprise app in Splunk SOAR.

For platform concepts, terminology, and product capabilities, see the Splunk SOAR documentation.

The BloodHound Enterprise for Splunk SOAR app allows you to view attack path findings from BloodHound Enterprise within the Splunk SOAR platform. This integration enables security teams to monitor and respond to potential attack paths in real-time using Splunk SOAR’s automation capabilities.

Integrating BloodHound with Splunk SOAR provides the following advantages:

• Get real-time visibility into attack path findings: View BloodHound Enterprise findings in Splunk SOAR as they are detected.

• Automate response playbooks from BloodHound detections: Trigger investigation and containment workflows automatically when BloodHound Enterprise identifies a risk.

• Reduce manual triage and improve consistency: Standardize repeatable response actions across your existing security tooling.

• Accelerate mitigation of privilege escalation risks: Use automated tasks to respond to high-impact identity threats faster.

Prerequisites

Before you begin the installation and configuration process, ensure the following prerequisites are met:

• Admin access to a Splunk SOAR instance
• Access to a BloodHound Enterprise tenant
• BloodHound Enterprise non-personal API key/ID pair with the Auditor role

Install the app

Installing the BloodHound Enterprise for Splunk SOAR app involves the following steps:

1. Navigate to Splunk SOAR

   1. Log in to your Splunk SOAR instance as an admin.

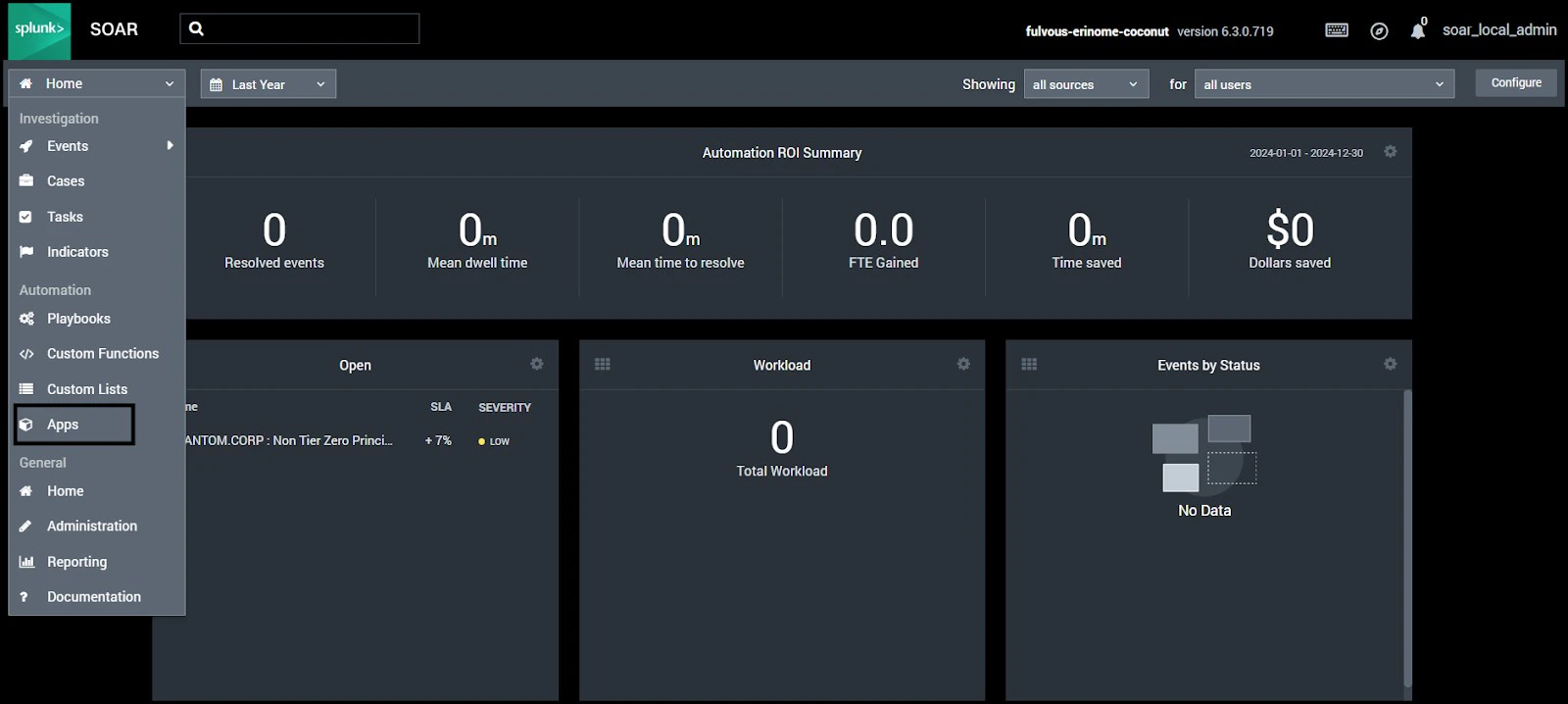

   2. Click on the Home dropdown in the top-left corner and select Apps.

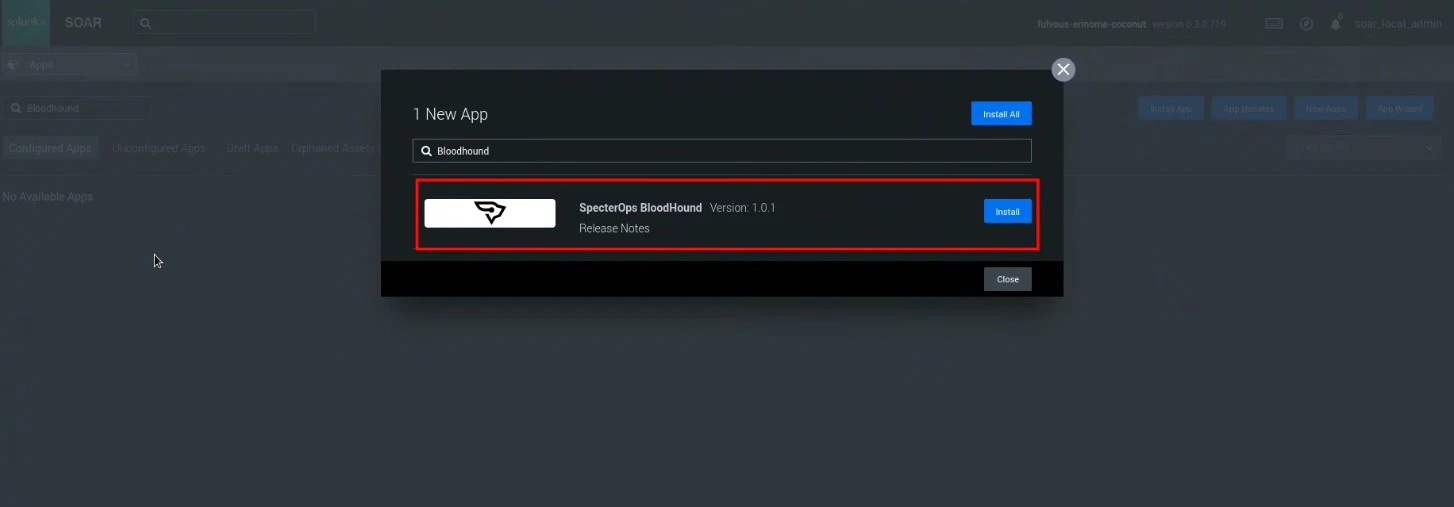

2. Install the app in Splunk SOAR

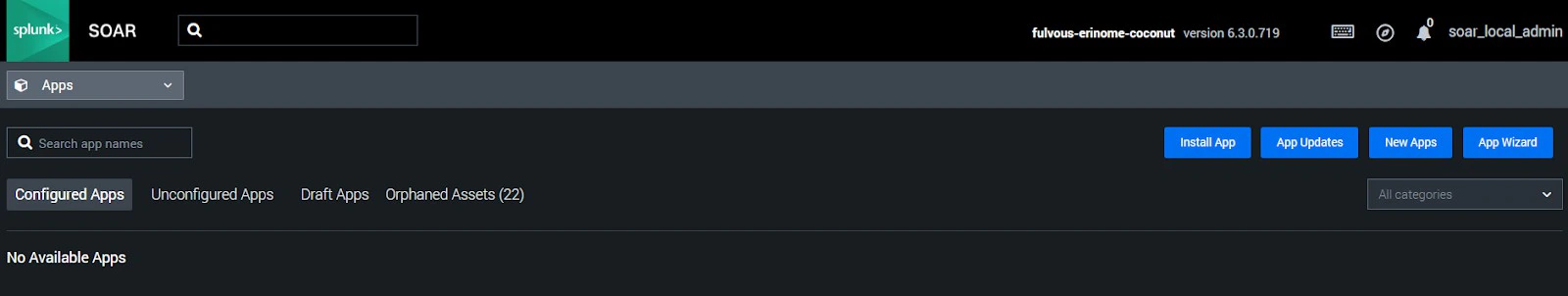

   1. Enter BloodHound in the app search box.



   2. Click Install.

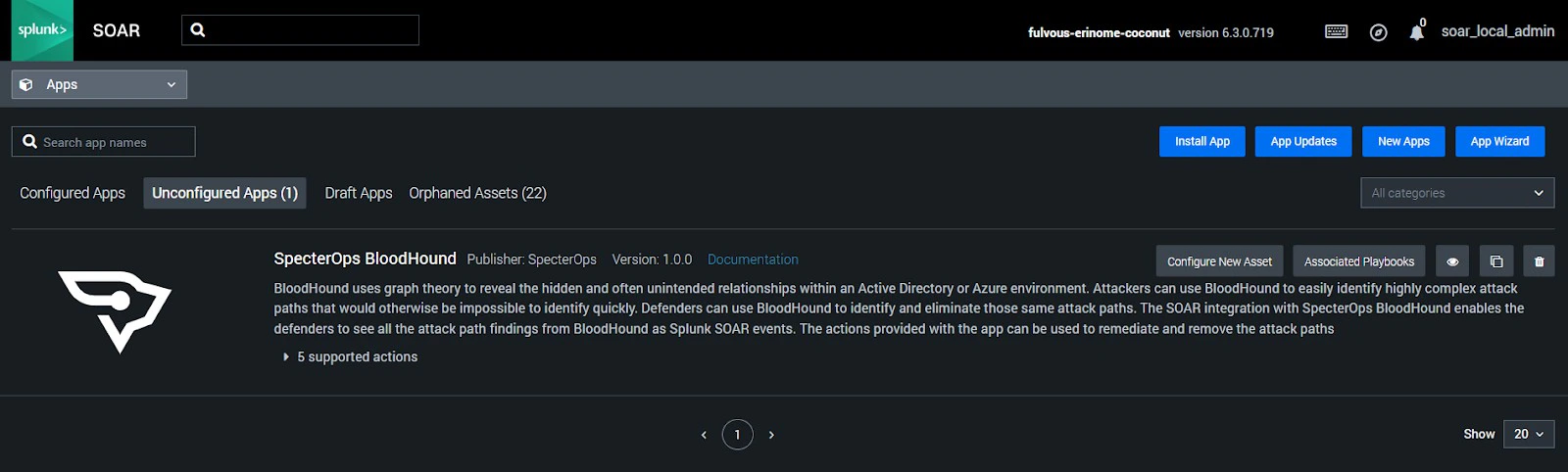

      After installing the app, you can see it in the Unconfigured Apps section.



Configure the app

After installing the BloodHound Enterprise for Splunk SOAR app, you need to configure it to connect to your BloodHound Enterprise tenant and start ingesting attack path findings. The configuration process involves the following steps:

1. Navigate to app configuration

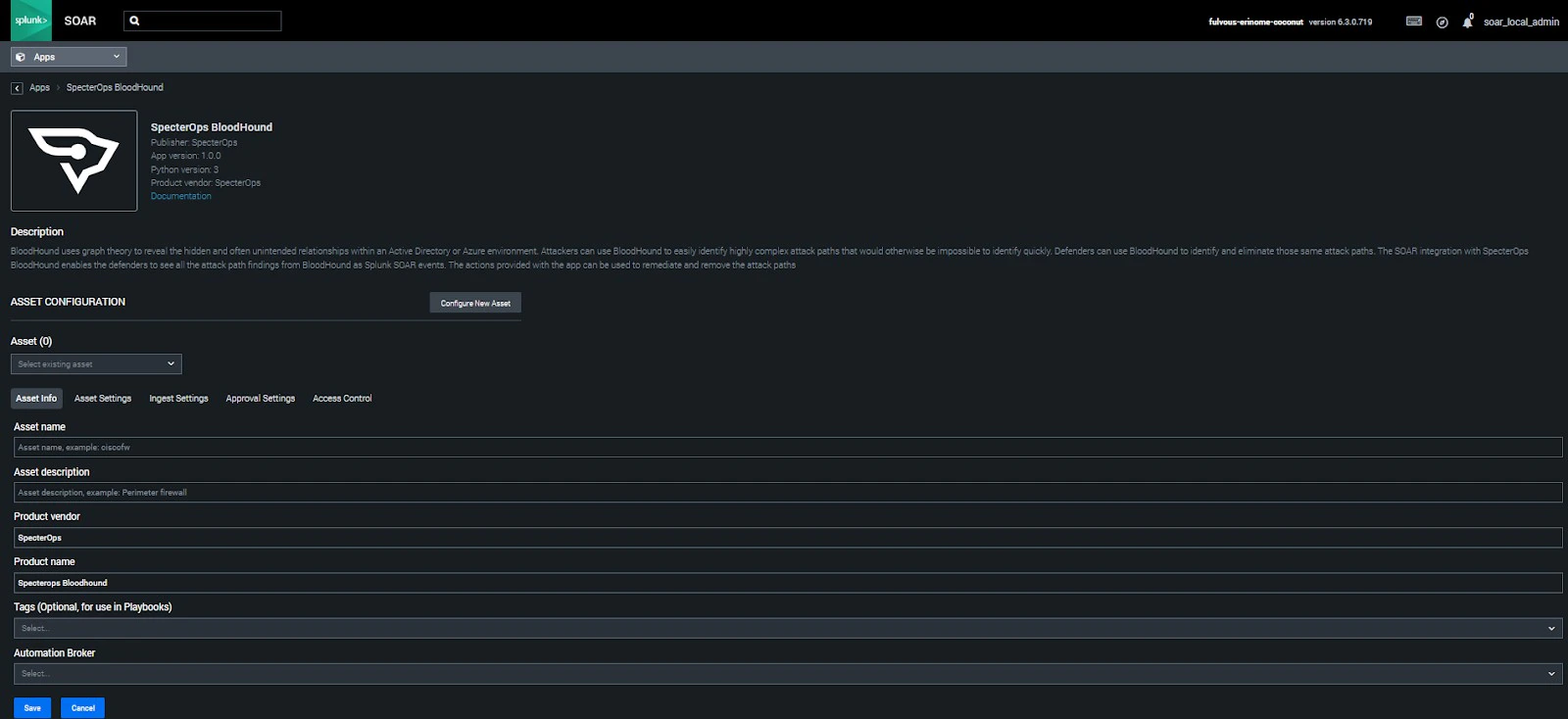

   On the Unconfigured Apps page, click Configure New Asset for the BloodHound Enterprise app.

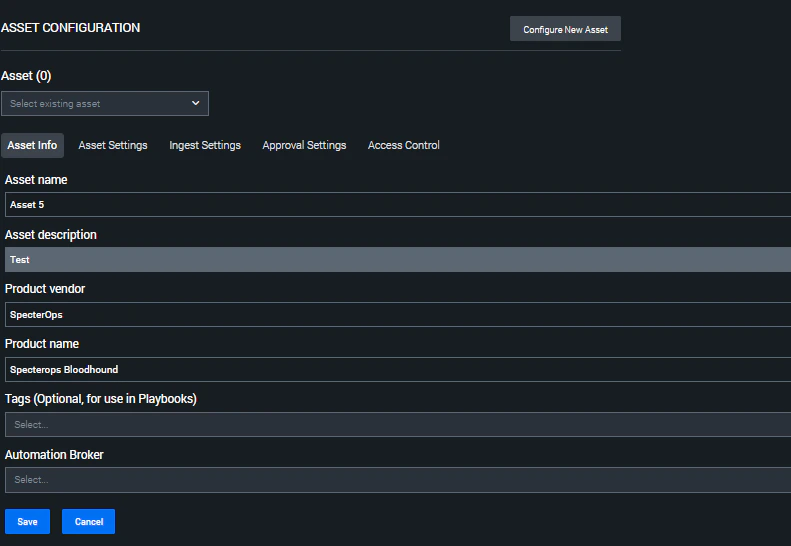

2. Enter asset details

   1. Enter the Asset name and the Asset description.



   2. Click Save.

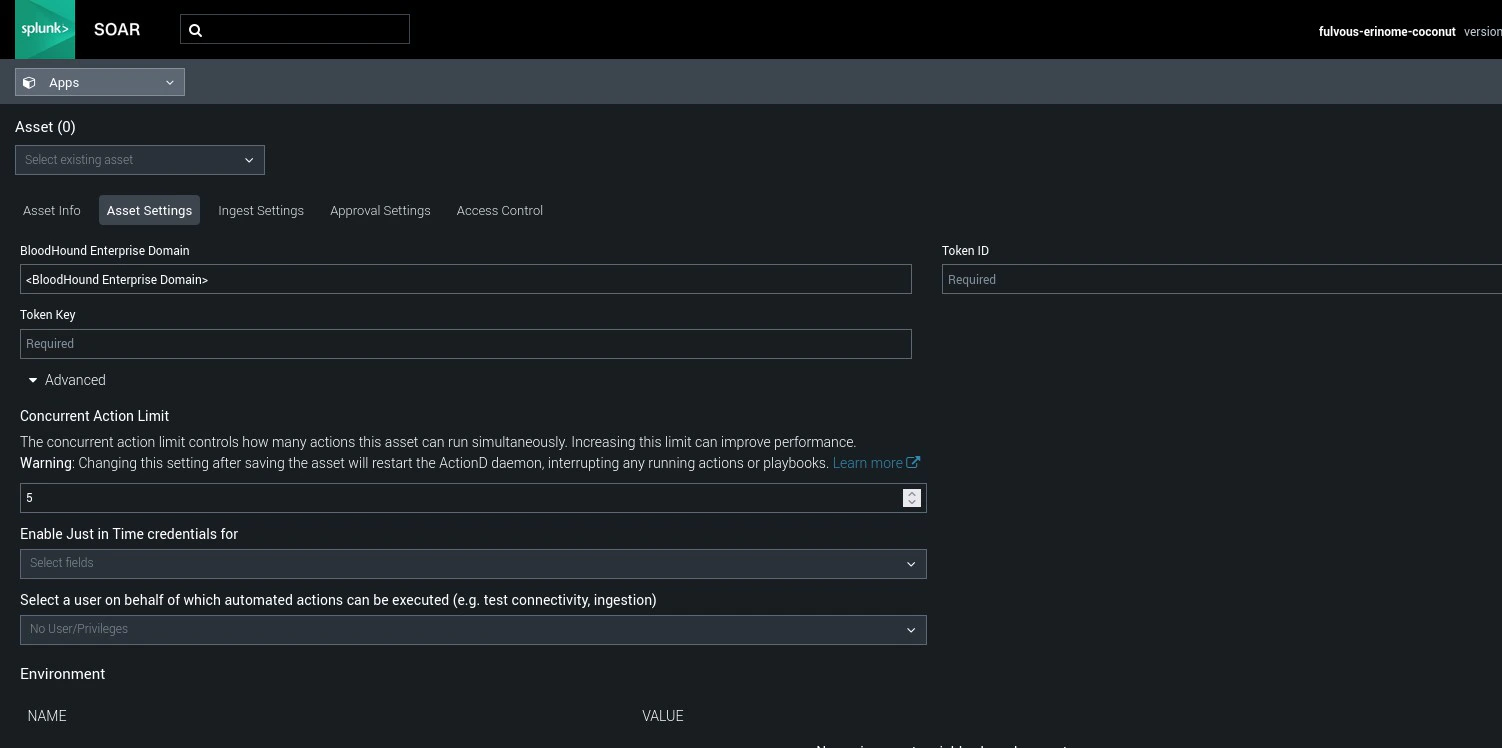

3. Configure API credentials

   1. Click Asset Settings to set up the connection to BloodHound Enterprise.

   2. Enter the following details:

      Field	Description
      BloodHound Enterprise Domain	The URL you use to access your BloodHound Enterprise tenant
      Token Key	The token key from your BloodHound Enterprise non-personal API key/ID pair
      Token ID	The token ID from your BloodHound Enterprise non-personal API key/ID pair



   3. Click Save.

4. Configure data ingestion

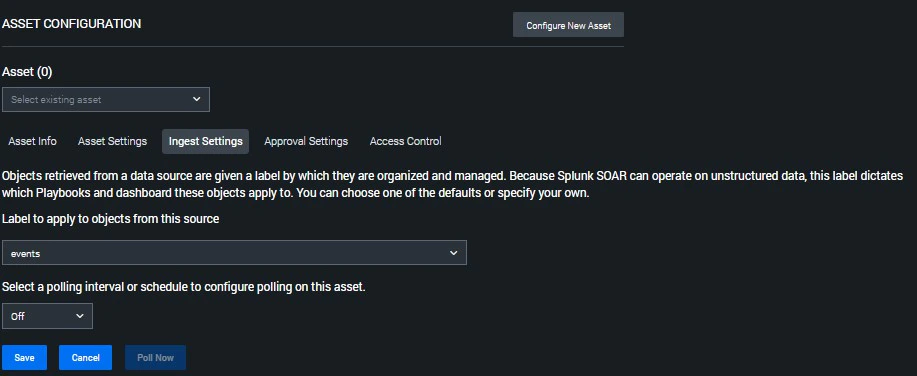

   1. Click Ingest Settings to set up how the app ingests data from BloodHound Enterprise.

   2. Configure the following settings:

      Field	Description
      Label to apply to objects from this source	Select events to label ingested data as events in Splunk SOAR
      Select a polling interval or schedule to configure polling on this asset	Choose how often the app should poll BloodHound Enterprise for new findings. For testing, you can select Off and use manual polling.



   3. Click Save.

5. Test connectivity

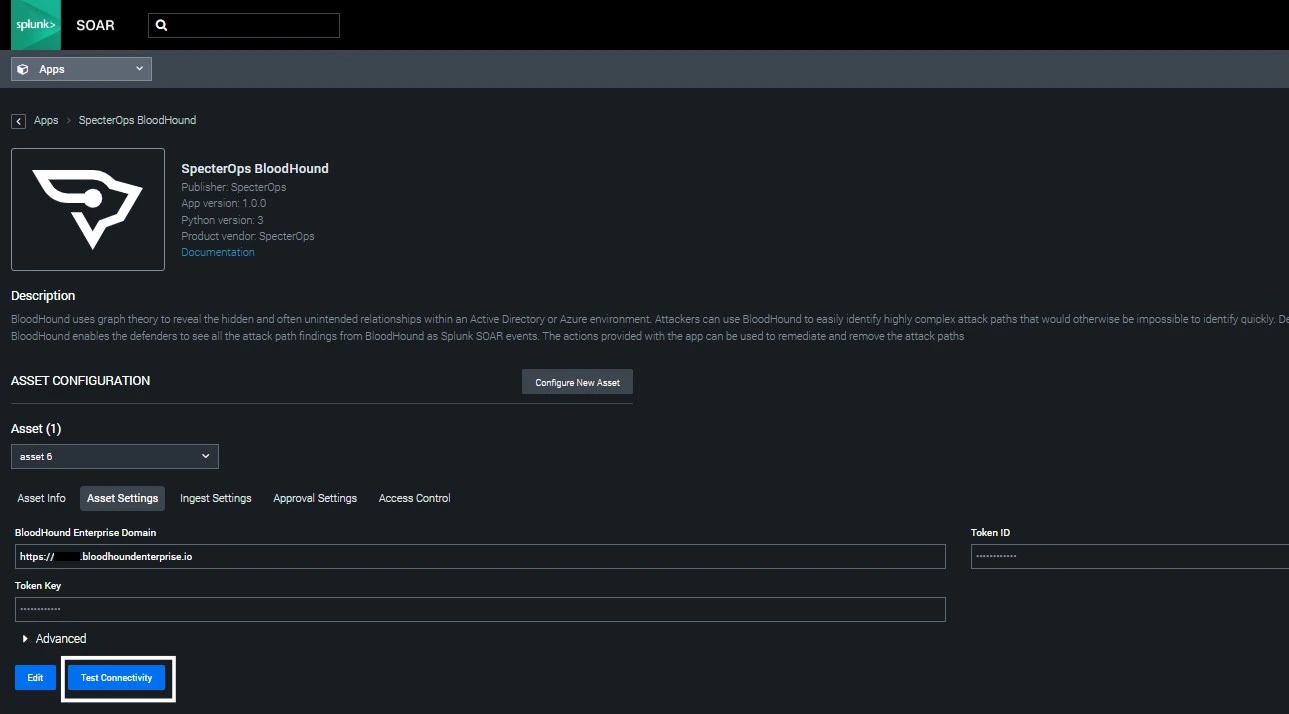

   Go back to Asset Settings and click Test Connectivity to verify the configuration.

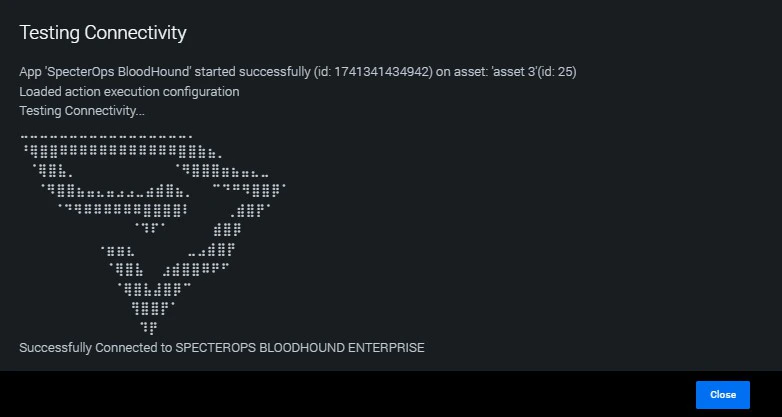

   If the configuration is correct, Splunk SOAR confirms that the app is connected successfully, as shown in the following image.


6. Ingest data

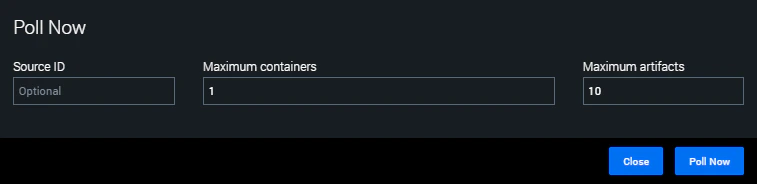

   If you set the polling interval to Off for testing, you can manually poll for events to start ingesting data from BloodHound Enterprise.

   1. Click Ingest Settings.

   2. Enter the following values:

      Field	Description
      Maximum containers	The maximum number of containers (event groupings) to ingest per polling cycle.
      Maximum artifacts	The maximum number of artifacts (individual data items) to ingest per polling cycle.

      See the Splunk SOAR documentation for more information about these settings.

   3. Click Poll Now.

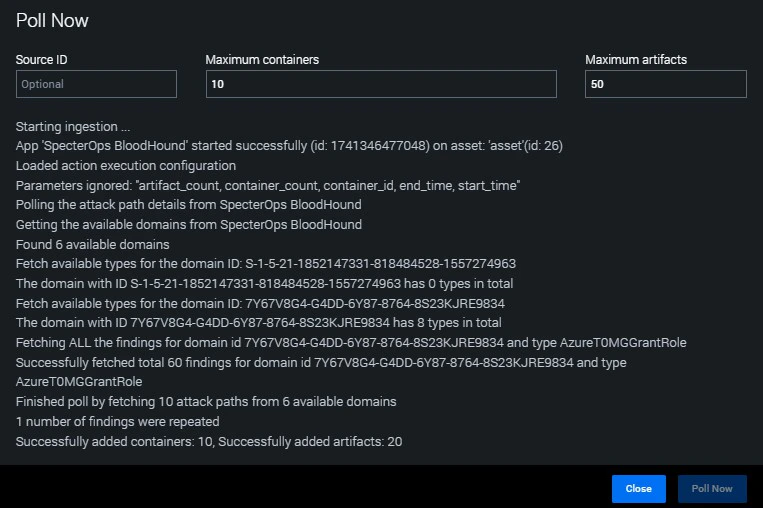

      After polling completes, confirm that containers and artifacts were added successfully, as shown below.



   4. Click Close.

Next steps

The configuration is now complete. You can view attack path findings from BloodHound Enterprise in Splunk SOAR and use them to trigger automated response playbooks.
